Regularization in Linear and Logistic Regression

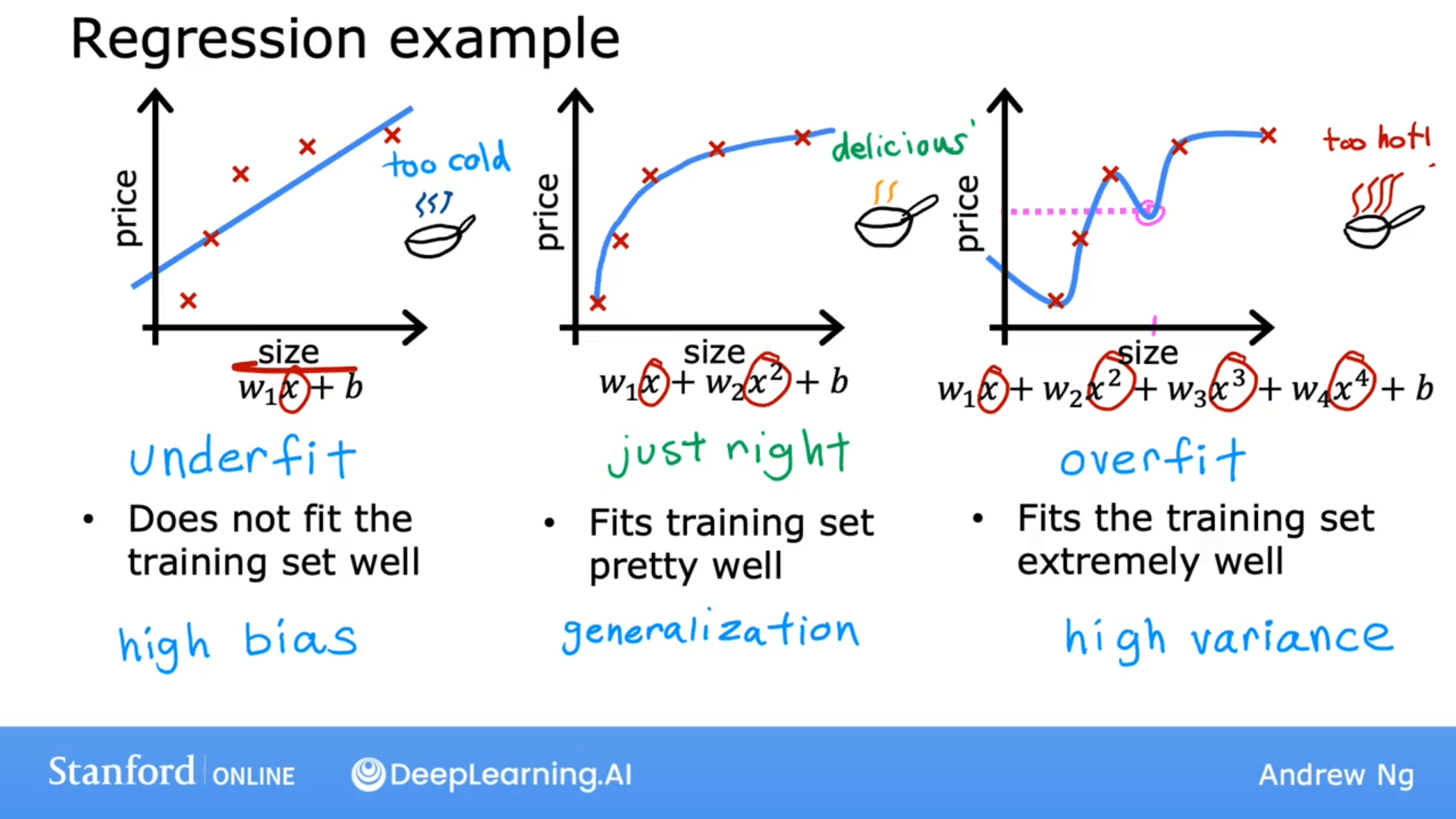

Overfitting and Underfitting

Definitions

Overfitting (High Variance) This occurs when the algorithm tries to fit the training data too well and fails to generalize.

• Characteristics: Uses too many features.
• Result: Error is almost zero on training data, but the model performs poorly on new, unseen data.

Underfitting (High Bias) This occurs when the algorithm does not fit the training data well and fails to make accurate predictions.

• Characteristics: Uses too few features.
• Result: Error is high on training data, and the model performs poorly overall.

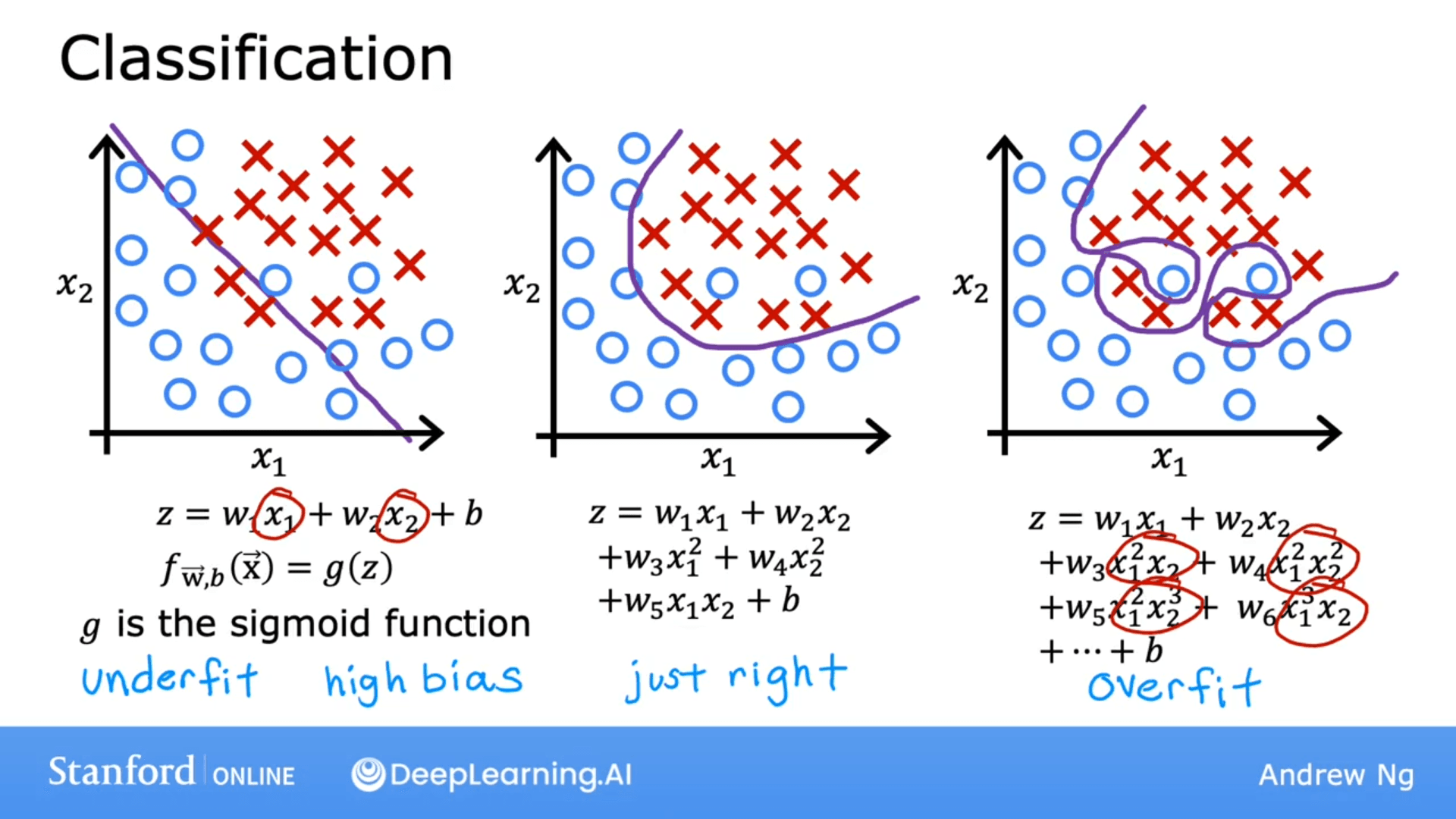

When applying these concepts to classification with Logistic Regression, the idea is quite similar:

Concept Quiz

Question: Our goal when creating a model is to be able to use the model to predict outcomes correctly for new examples. A model which does this is said to generalize well. When a model fits the training data well but does not work well with new examples that are not in the training set, this is an example of:

A. None of the above
B. Underfitting (high bias)
C. Overfitting (high variance)
D. A model that generalizes well (neither high variance nor high bias)

Answer: C. Overfitting.
Explanation: This is exactly when the model does not generalize well to new examples despite low training error.

Addressing Overfitting

There are three main ways to address overfitting:

1. Collect More Training Data

With a larger training set, the learning algorithm will learn to fit a function that is less "wiggly" and more generalized.

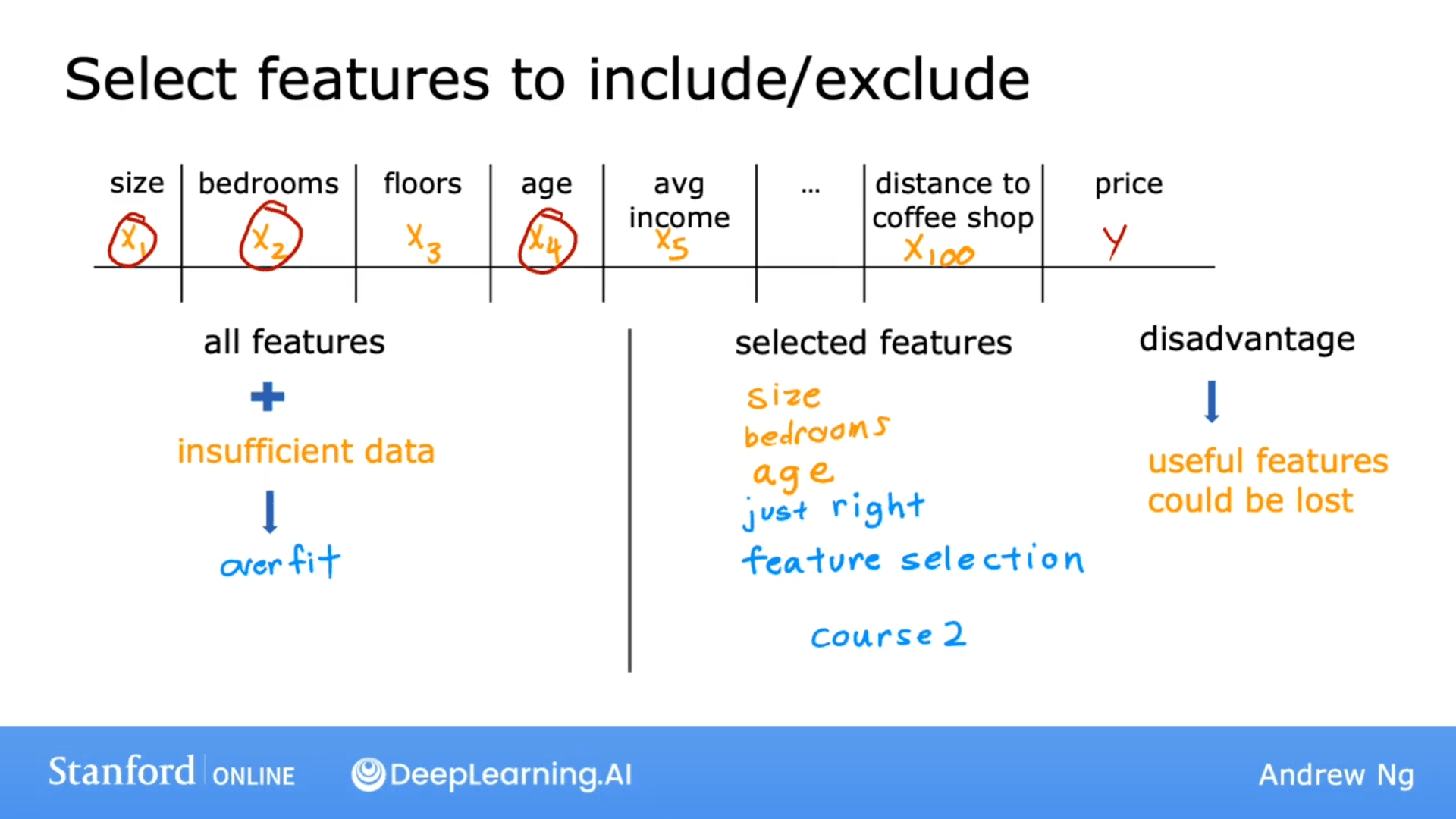

2. Feature Selection

If we have many features and limited training data, the model is more likely to overfit. In such cases, it is advised to choose only a subset of the most useful features.

• Example: Keep size, bedroom, age. Discard distance to coffee shop.
• Disadvantage: Useful information about the data might be lost.

3. Regularization

In an overfit model, we often notice that the parameters $w_j$ are relatively large. Regularization works by encouraging the learning algorithm to shrink the values of the parameters without demanding they be set to exactly zero (unlike feature elimination).

• Benefit: It allows us to keep all features but prevents them from having an overly large impact.
• Convention: We generally only regularize the parameters $w_j$ and leave $b$ alone, as regularizing $b$ typically makes little difference.

Question: Applying regularization, increasing the number of training examples, or selecting a subset of the most relevant features are methods for...

Answer: A. Addressing overfitting (high variance).

Cost Function with Regularization

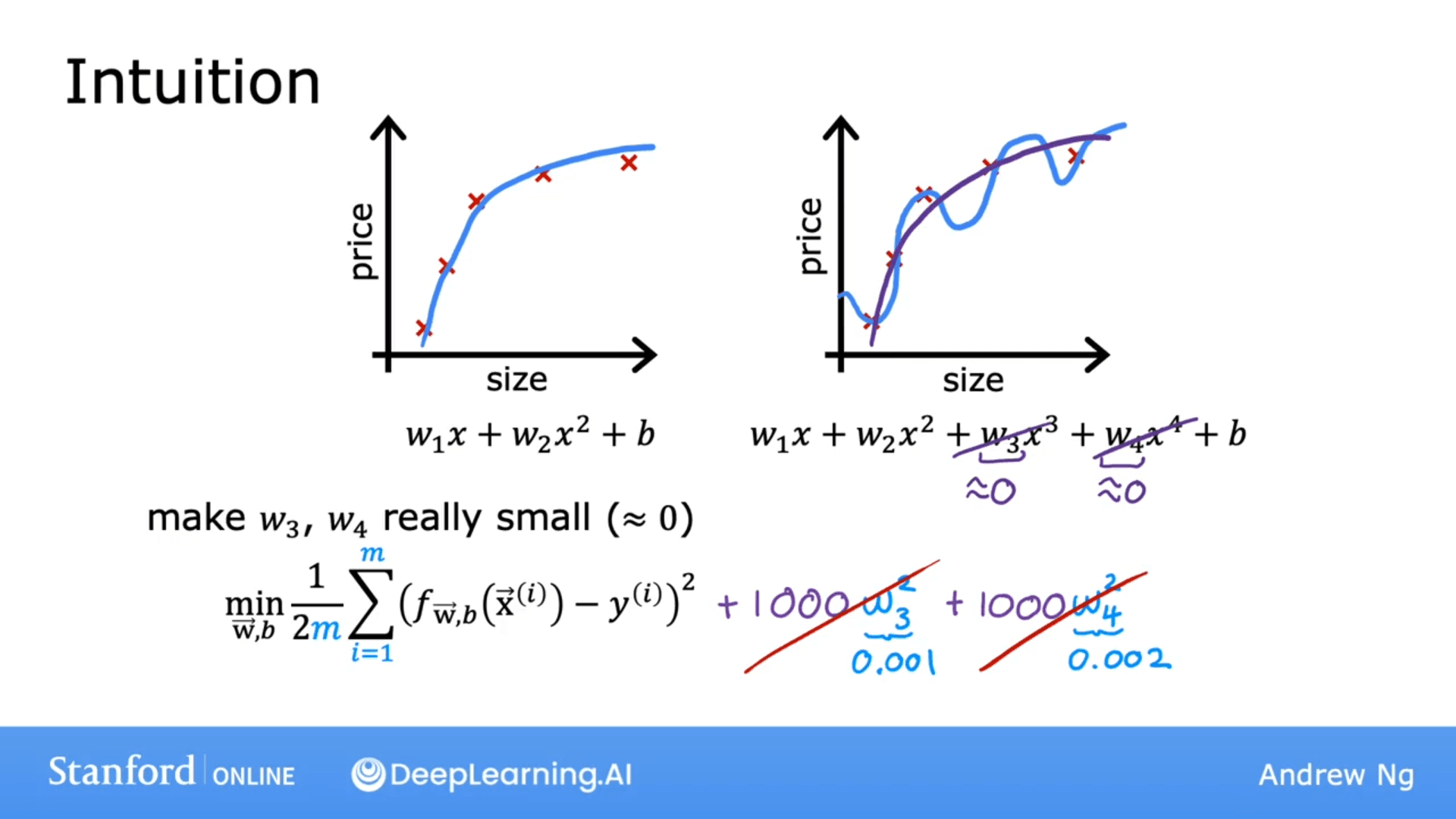

The Intuition

Given a function

If we want to penalize specific terms (e.g., $w_3$ and $w_4$) to prevent them from becoming too large, we can modify the cost function:

By adding a large penalty (1000), the model is forced to keep $w_3$ and $w_4$ small to minimize the overall cost.

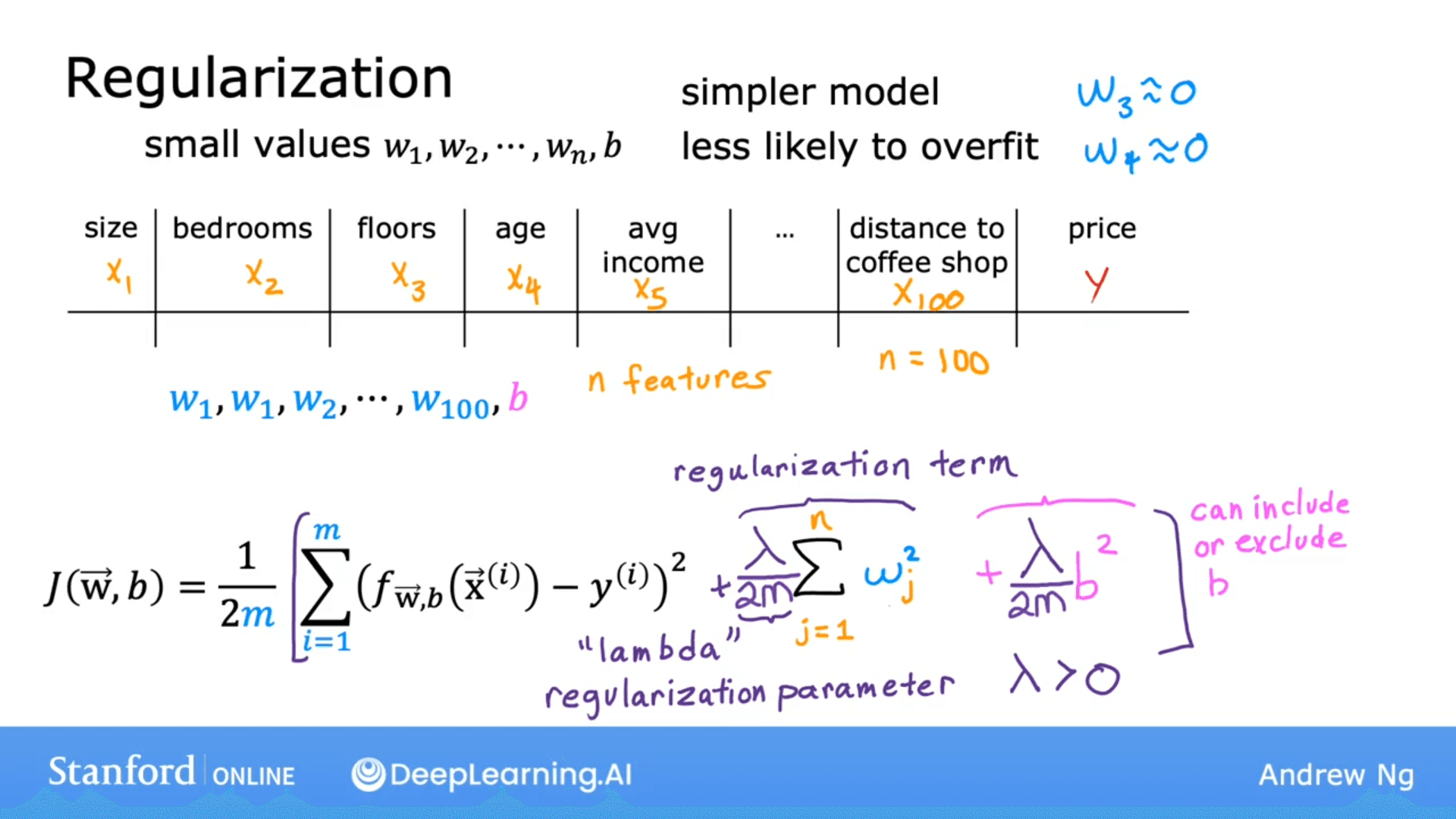

Generalized Regularized Cost Function

Since we don't know in advance which features are "bad", we penalize all $w_j$ parameters.

• $\lambda$ (Lambda): The regularization parameter ($\lambda > 0$).
• The term

balances the trade-off between fitting the data (MSE) and keeping parameters small (Regularization).

• Minimizing MSE Term: Reduces error between prediction and true value.
• Minimizing Regularization Term: Keeps $w_j$ small to reduce overfitting.

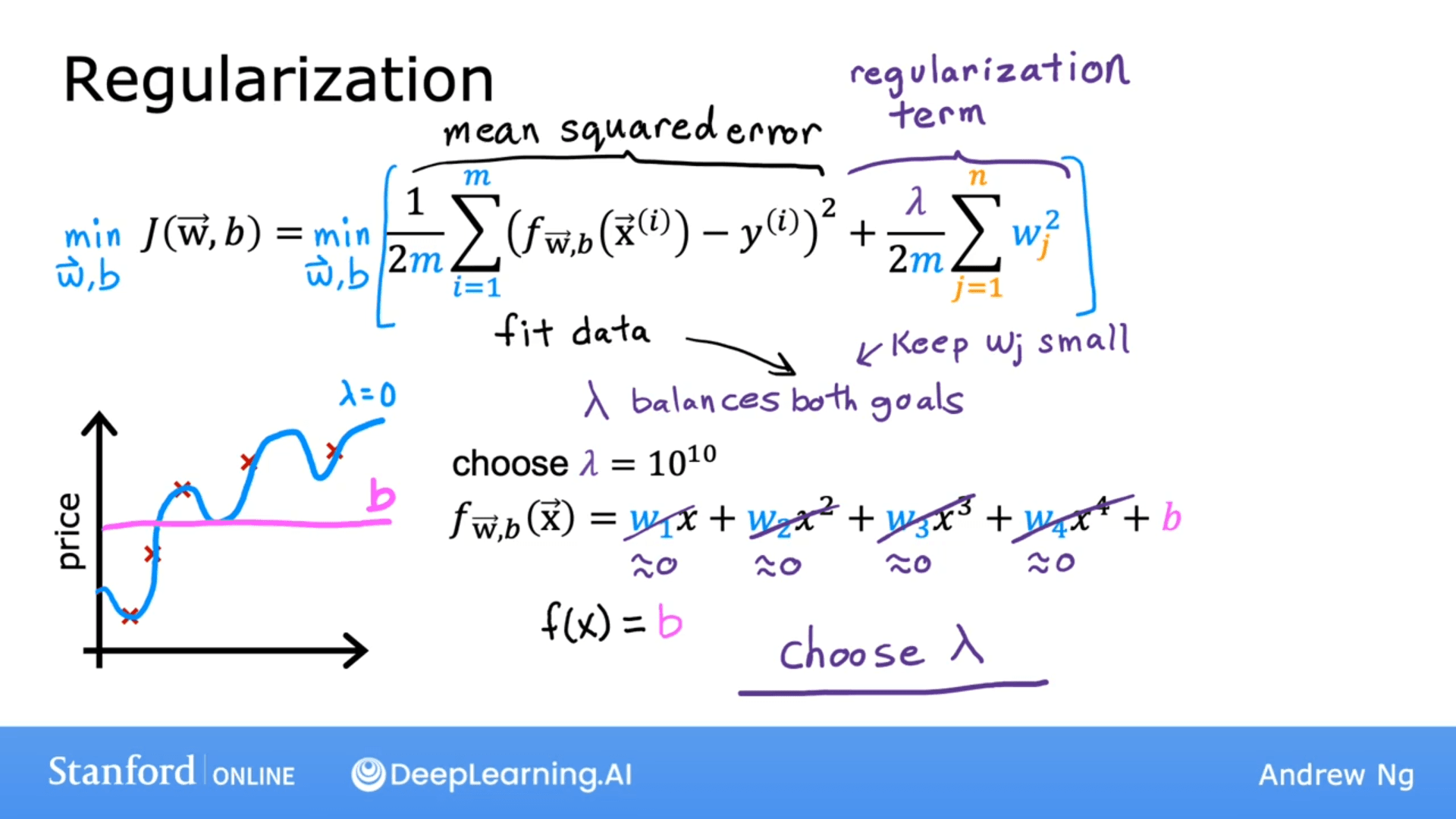

Choosing Lambda ($\lambda$)

• If $\lambda \approx 0$:
  No regularization. The model minimizes MSE only, leading to Overfitting.
• If $\lambda$ is extremely large (e.g., $10^{10}$):
  The model forces $w_j \approx 0$. The function becomes $f(x) = b$ (a flat line). This leads to Underfitting.

Question: For a model that includes the regularization parameter $\lambda$, increasing $\lambda$ will tend to:

Answer: A. Decrease the size of parameters $w_1, w_2, ..., w_n$.

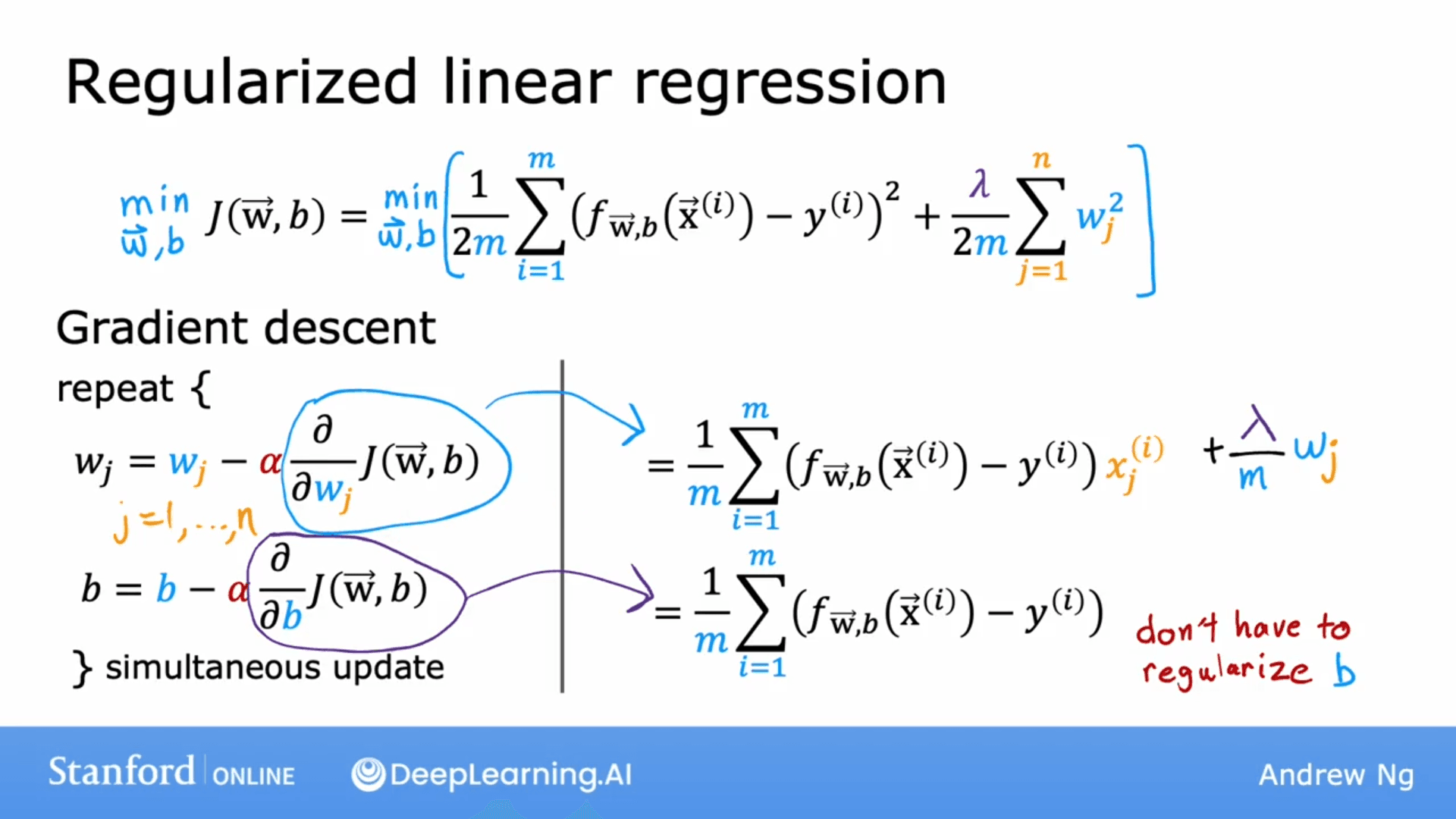

Regularized Linear Regression

Cost Function

Gradient Descent Update Rule

The update rule applies simultaneously to all $j$:

Substituting the derivatives:

We can rearrange the update for $w_j$ to see the impact clearly:

• The term

is usually slightly less than 1 (e.g., 0.99).

• This shrinks $w_j$ slightly on every iteration before the standard gradient update is applied.

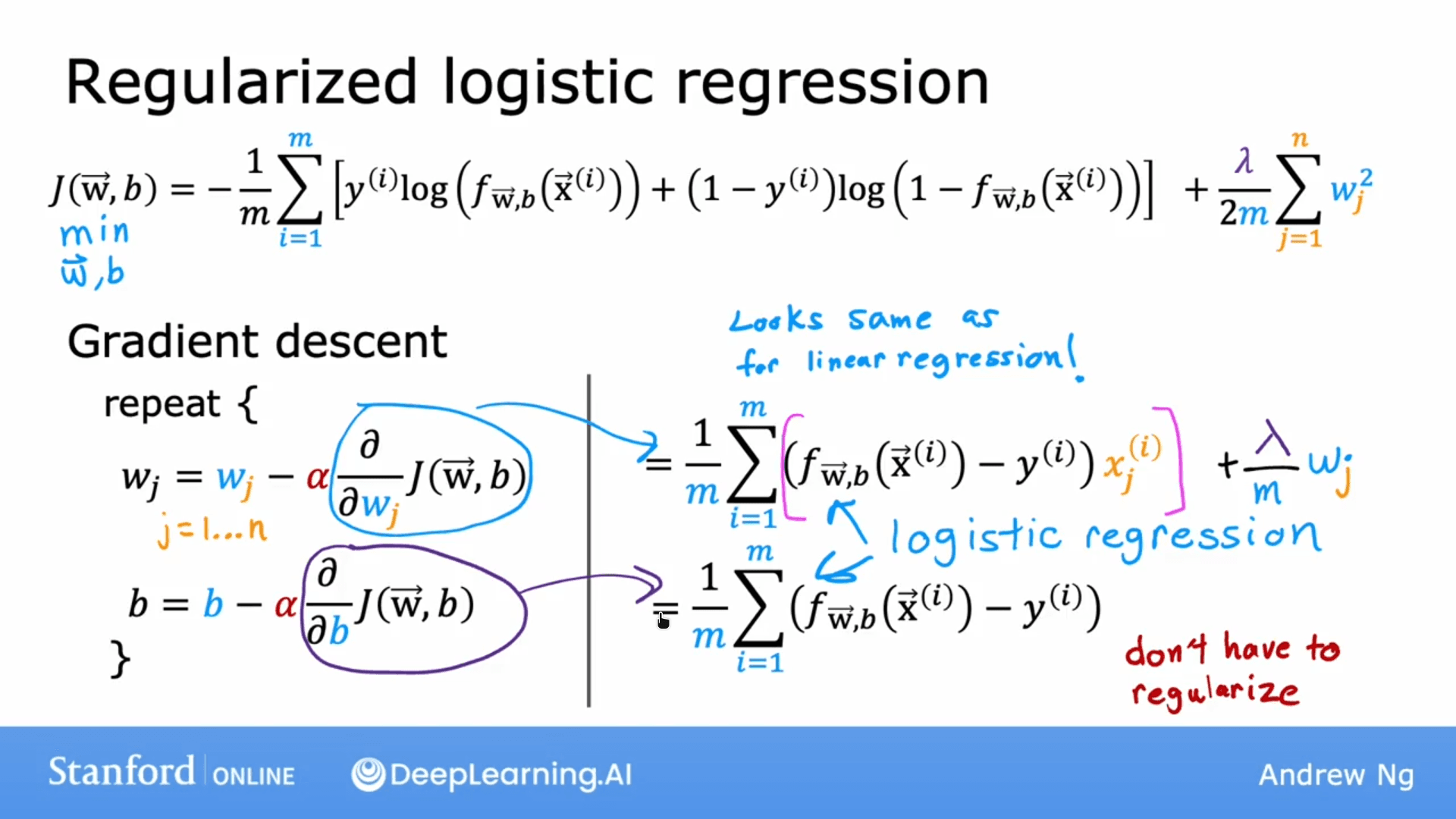

Regularized Logistic Regression

When training Logistic Regression with many features (e.g., high-degree polynomials), the risk of overfitting increases.

Cost Function

The cost function is the standard Log Loss plus the regularization term:

Gradient Descent

The update rules look identical to Linear Regression, but remember that for Logistic Regression,

Lab: Implementation in Python

The following sections implement regularized Linear and Logistic regression using numpy.

1. Sigmoid Function

Implementation of the helper function

import numpy as np
import math

def sigmoid(z):
    """
    Compute the sigmoid of z
    Args:
        z (ndarray): A scalar, numpy array of any size.
    Returns:
        g (ndarray): sigmoid(z), with the same shape as z
    """
    g = 1 / (1 + np.exp(-z))
    return g

Output Verification:

sigmoid([ -1, 0, 1, 2]) = [0.26894142 0.5        0.73105858 0.88079708]

2. Cost Functions with Regularization

Linear Regression Cost

Includes the term:

def compute_cost_linear_reg(X, y, w, b, lambda_ = 1):
    """
    Computes the cost over all examples
    Args:
      X (ndarray (m,n): Data, m examples with n features
      y (ndarray (m,)): target values
      w (ndarray (n,)): model parameters
      b (scalar)      : model parameter
      lambda_ (scalar): Controls amount of regularization
    Returns:
      total_cost (scalar):  cost
    """
    m  = X.shape[0]
    n  = len(w)
    cost = 0.
    for i in range(m):
        f_wb_i = np.dot(X[i], w) + b
        cost = cost + (f_wb_i - y[i])**2
    cost = cost / (2 * m)

    reg_cost = 0
    for j in range(n):
        reg_cost += (w[j]**2)
    reg_cost = (lambda_/(2*m)) * reg_cost

    total_cost = cost + reg_cost
    return total_cost

Output Verification:

Regularized cost: 0.07917239320214275

Logistic Regression Cost

Implementation of Equation:

def compute_cost_logistic_reg(X, y, w, b, lambda_ = 1):
    """
    Computes the cost over all examples with regularization
    Args:
      X (ndarray (m,n): Data, m examples with n features
      y (ndarray (m,)): target values
      w (ndarray (n,)): model parameters
      b (scalar)      : model parameter
      lambda_ (scalar): Controls amount of regularization
    Returns:
      total_cost (scalar):  cost
    """
    m,n  = X.shape
    cost = 0.
    for i in range(m):
        z_i = np.dot(X[i], w) + b
        f_wb_i = sigmoid(z_i)
        # Prevent log(0) errors by clipping or handling edge cases in production
        cost += -y[i]*np.log(f_wb_i) - (1-y[i])*np.log(1-f_wb_i)

    cost = cost/m

    reg_cost = 0
    for j in range(n):
        reg_cost += (w[j]**2)
    reg_cost = (lambda_/(2*m)) * reg_cost

    total_cost = cost + reg_cost
    return total_cost

Output Verification:

Regularized cost: 0.6850849138741673

3. Gradient Descent with Regularization

The gradient calculation adds the term $\frac{\lambda}{m} w_j$ to the partial derivative with respect to $w_j$. The bias $b$ is not regularized.

Linear Regression Gradient

def compute_gradient_linear_reg(X, y, w, b, lambda_):
    """
    Computes the gradient for linear regression
    """
    m,n = X.shape
    dj_dw = np.zeros((n,))
    dj_db = 0.

    for i in range(m):
        err = (np.dot(X[i], w) + b) - y[i]
        for j in range(n):
            dj_dw[j] = dj_dw[j] + err * X[i, j]
        dj_db = dj_db + err
    dj_dw = dj_dw / m
    dj_db = dj_db / m

    # Add Regularization term
    for j in range(n):
        dj_dw[j] = dj_dw[j] + (lambda_/m) * w[j]

    return dj_db, dj_dw

Output Verification:

dj_db: 0.6648774569425726
Regularized dj_dw:
 [0.29653214748822276, 0.4911679625918033, 0.21645877535865857]

Logistic Regression Gradient

def compute_gradient_logistic_reg(X, y, w, b, lambda_):
    """
    Computes the gradient for logistic regression
    Args:
      X (ndarray (m,n): Data
      y (ndarray (m,)): target values
      w (ndarray (n,)): parameters
      b (scalar)      : parameter
      lambda_ (scalar): Regularization constant
    Returns
      dj_dw (ndarray Shape (n,)): Gradient of cost w.r.t. parameters w.
      dj_db (scalar)            : Gradient of cost w.r.t. parameter b.
    """
    m,n = X.shape
    dj_dw = np.zeros((n,))
    dj_db = 0.0

    for i in range(m):
        f_wb_i = sigmoid(np.dot(X[i],w) + b)
        err_i  = f_wb_i  - y[i]
        for j in range(n):
            dj_dw[j] = dj_dw[j] + err_i * X[i,j]
        dj_db = dj_db + err_i
    dj_dw = dj_dw/m
    dj_db = dj_db/m

    # Add Regularization term
    for j in range(n):
        dj_dw[j] = dj_dw[j] + (lambda_/m) * w[j]

    return dj_db, dj_dw

Output Verification:

dj_db: 0.341798994972791
Regularized dj_dw:
 [0.17380012933994293, 0.32007507881566943, 0.10776313396851499]

4. Gradient Descent Algorithm

The loop that applies the updates. This function works for both linear and logistic regression provided the correct cost_function and gradient_function are passed.

def gradient_descent(X, y, w_in, b_in, cost_function, gradient_function, alpha, num_iters, lambda_):
    """
    Performs batch gradient descent to learn theta.
    """
    # number of training examples
    m = len(X)

    # Arrays to store cost J and w's at each iteration
    J_history = []
    w_history = []

    for i in range(num_iters):

        # Calculate the gradient and update the parameters
        dj_db, dj_dw = gradient_function(X, y, w_in, b_in, lambda_)

        # Update Parameters using w, b, alpha and gradient
        w_in = w_in - alpha * dj_dw
        b_in = b_in - alpha * dj_db

        # Save cost J at each iteration
        if i < 100000:      # prevent resource exhaustion
            cost =  cost_function(X, y, w_in, b_in, lambda_)
            J_history.append(cost)

        # Print cost every at intervals 10 times or as many iterations if < 10
        if i % math.ceil(num_iters/10) == 0 or i == (num_iters-1):
            w_history.append(w_in)
            print(f"Iteration {i:4}: Cost {float(J_history[-1]):8.2f}   ")

    return w_in, b_in, J_history, w_history

Expected Output (Regularized Logistic Regression):

Iteration    0: Cost     0.72
Iteration 1000: Cost     0.59
Iteration 2000: Cost     0.56
Iteration 3000: Cost     0.53
Iteration 4000: Cost     0.51
Iteration 5000: Cost     0.50
Iteration 6000: Cost     0.48
Iteration 7000: Cost     0.47
Iteration 8000: Cost     0.46
Iteration 9000: Cost     0.45
Iteration 9999: Cost     0.45

5. Prediction

To interpret the output of Logistic Regression as a class label (0 or 1), we apply a threshold (usually 0.5).

def predict(X, w, b):
    """
    Predict whether the label is 0 or 1 using learned logistic
    regression parameters w
    """
    m, n = X.shape
    p = np.zeros(m)

    for i in range(m):
        z_wb = np.dot(X[i], w) + b
        f_wb = sigmoid(z_wb)

        # Apply the threshold
        p[i] = f_wb >= 0.5

    return p

Output Verification:

Output of predict: shape (4,), value [0. 1. 1. 1.]
Train Accuracy: 82.203390

Visualizing Regularization Effects

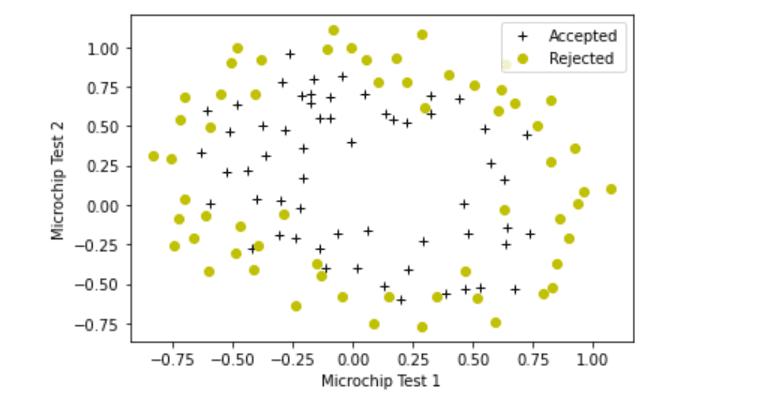

In the lab exercises, mapping features to higher degrees (e.g., polynomial mapping) allows decision boundaries to be non-linear. However, this often leads to overfitting.

• No Regularization ($\lambda = 0$):
  The boundary is very "wiggly" and overfits the training set.
• High Regularization ($\lambda = 1$):
  The boundary smoothes out, sacrificing some training accuracy for better generalization.

Decision Boundary without Regularization:

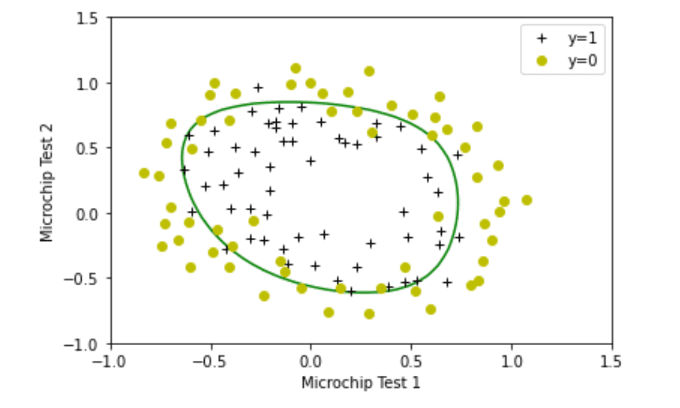

Decision Boundary with Regularization:
